Labb 30: STP mitigering

I denna laboration kommer vi att undersöka hur Spanning Tree Protocol (STP), PortFast och BPDU Guard används för att skydda nätverket från loopar och oönskade STP-attacker. Dessutom implementerar vi Dynamic ARP Inspection (DAI) för att förhindra ARP-förgiftning (poisoning) och säkerställa nätverksintegritet.

Bakgrund

I nätverk med flera switchar kan redundanta länkar skapa nätverksloopar. STP identifierar och blockerar dessa loopar dynamiskt. PortFast snabbar upp nätverkstillgången för slutnoder genom att undvika STP-processen för access-portar, medan BPDU Guard förhindrar oönskade STP-enheter att påverka nätverket genom att stänga av portar som tar emot BPDU. Dynamic ARP Inspection (DAI) validerar ARP-paket genom att kontrollera att MAC-adresser och IP-adresser överensstämmer med DHCP-bindningar eller statiska ARP-bindningar, vilket skyddar mot ARP-förgiftning.

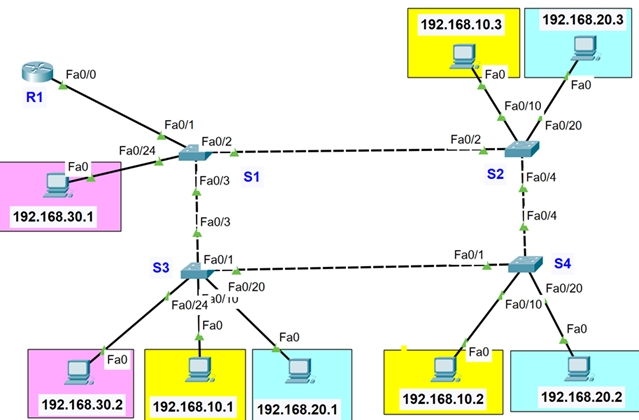

Topologi

Konfigurationer

  • R1(config)# interface fa0/0
  • R1(config-if)# no ip address
  • R1(config-if)# shutdown
  • R1(config-if)# exit
  • R1(config)# interface fa0/0.10
  • R1(config-subif)# encapsulation dot1q 10
  • R1(config-subif)# ip address 192.168.10.254 255.255.255.0
  • R1(config-subif)# no shut
  • R1(config-subif)# exit
  • R1(config)# interface fa0/0.20
  • R1(config-subif)# encapsulation dot1q 20
  • R1(config-subif)# ip address 192.168.20.254 255.255.255.0
  • R1(config-subif)# no shut
  • R1(config-subif)# exit
  • R1(config)# interface fa0/0.30
  • R1(config-subif)# encapsulation dot1q 30
  • R1(config-subif)# ip address 192.168.30.254 255.255.255.0
  • R1(config-subif)# no shut
  • R1(config-subif)# exit
  • R1(config)# interface fa0/0
  • R1(config-if)# no shut
  • R1(config-if)# end
  • R1#
  • S1(config)# vlan 10
  • S1(config-vlan)# name vlan10
  • S1(config-vlan)# vlan 20
  • S1(config-vlan)# name vlan20
  • S1(config-vlan)# vlan 30
  • S1(config-vlan)# name vlan30
  • S1(config-vlan)# exit
  • S1(config)# interface fa0/24
  • S1(config-if)# switchport mode access
  • S1(config-if)# switchport access vlan 30
  • S1(config-if)# no shut
  • S1(config-if)# exit
  • S1(config)# interface range fa 0/1-3
  • S1(config-if-range)# switchport mode trunk
  • S1(config-if-range)# exit
  • S1(config)#
  • S2(config)# vlan 10
  • S2(config-vlan)# name vlan10
  • S2(config-vlan)# vlan 20
  • S2(config-vlan)# name vlan20
  • S2(config-vlan)# vlan 30
  • S2(config-vlan)# name vlan30
  • S2(config-vlan)# exit
  • S2(config)# interface fa0/10
  • S2(config-if)# switchport mode access
  • S2(config-if)# switchport access vlan 10
  • S2(config-if)# no shut
  • S2(config-if)# exit
  • S2(config)# interface fa0/20
  • S2(config-if)# switchport mode access
  • S2(config-if)# switchport access vlan 20
  • S2(config-if)# no shut
  • S2(config-if)# exit
  • S2(config)# interface fa 0/2
  • S2(config-if)# switchport mode trunk
  • S2(config-if)# exit
  • S2(config)# interface fa 0/4
  • S2(config-if)# switchport mode trunk
  • S2(config-if)# exit
  • S2(config)#
  • S3(config)# vlan 10
  • S3(config-vlan)# name vlan10
  • S3(config-vlan)# vlan 20
  • S3(config-vlan)# name vlan20
  • S3(config-vlan)# vlan 30
  • S3(config-vlan)# name vlan30
  • S3(config-vlan)# exit
  • S3(config)# interface fa0/10
  • S3(config-if)# switchport mode access
  • S3(config-if)# switchport access vlan 10
  • S3(config-if)# no shut
  • S3(config-if)# exit
  • S3(config)# interface fa0/20
  • S3(config-if)# switchport mode access
  • S3(config-if)# switchport access vlan 20
  • S3(config-if)# no shut
  • S3(config-if)# exit
  • S3(config)# interface fa0/24
  • S3(config-if)# switchport mode access
  • S3(config-if)# switchport access vlan 30
  • S3(config-if)# no shut
  • S3(config-if)# exit
  • S3(config)# interface fa 0/1
  • S3(config-if)# switchport mode trunk
  • S3(config-if)# exit
  • S3(config)# interface fa 0/3
  • S3(config-if)# switchport mode trunk
  • S3(config-if)# exit
  • S3(config)#
  • S4(config)# vlan 10
  • S4(config-vlan)# name vlan10
  • S4(config-vlan)# vlan 20
  • S4(config-vlan)# name vlan20
  • S4(config-vlan)# vlan 30
  • S4(config-vlan)# name vlan30
  • S4(config-vlan)# exit
  • S4(config)# interface fa0/10
  • S4(config-if)# switchport mode access
  • S4(config-if)# switchport access vlan 10
  • S4(config-if)# no shut
  • S4(config-if)# exit
  • S4(config)# interface fa0/20
  • S4(config-if)# switchport mode access
  • S4(config-if)# switchport access vlan 20
  • S4(config-if)# no shut
  • S4(config-if)# exit
  • S4(config)# interface fa 0/1
  • S4(config-if)# switchport mode trunk
  • S4(config-if)# exit
  • S4(config)# interface fa 0/4
  • S4(config-if)# switchport mode trunk
  • S4(config-if)# exit
  • S4(config)#
  • STP-konfiguration (VLAN 30 Root-brygga på S1)
  • S1(config)# spanning-tree vlan 30 root primary
  • PortFast-konfiguration på access-portar
  • S1(config)# interface fa0/24
  • S1(config-if)# spanning-tree portfast
  • S1(config-if)# exit
  • Markera trunkport som betrodd för ARP Inspection
  • S1(config)# interface range fa0/1-3
  • S1(config-if-range)# ip arp inspection trust
  • S1(config-if-range)# exit
  • Aktivera BPDU Guard globalt för alla PortFast-portar
  • S1(config)# spanning-tree portfast bpduguard default
  • Aktivera ARP Inspection för alla VLAN (10, 20, 30)
  • S1(config)# ip arp inspection vlan 10
  • S1(config)# ip arp inspection vlan 20
  • S1(config)# ip arp inspection vlan 30
  • S1(config)# end
  • S1#
  • PortFast-konfiguration på access-portar
  • S2(config)# interface fa0/10
  • S2(config-if)# spanning-tree portfast
  • S2(config-if)# exit
  • S2(config)# interface fa0/20
  • S2(config-if)# spanning-tree portfast
  • S2(config-if)# exit
  • Markera trunkport som betrodd för ARP Inspection
  • S2(config)# interface fa0/1
  • S2(config-if)# ip arp inspection trust
  • S2(config-if)# exit
  • S2(config)# interface fa0/4
  • S2(config-if)# ip arp inspection trust
  • S2(config-if)# exit
  • Aktivera BPDU Guard globalt för alla PortFast-portar
  • S2(config)# spanning-tree portfast bpduguard default
  • Aktivera ARP Inspection för alla VLAN (10, 20, 30)
  • S2(config)# ip arp inspection vlan 10
  • S2(config)# ip arp inspection vlan 20
  • S2(config)# ip arp inspection vlan 30
  • S2(config)# end
  • S2#
  • PortFast-konfiguration på access-portar
  • S3(config)# interface fa0/10
  • S3(config-if)# spanning-tree portfast
  • S3(config-if)# exit
  • S3(config)# interface fa0/20
  • S3(config-if)# spanning-tree portfast
  • S3(config-if)# exit
  • S3(config)# interface fa0/24
  • S3(config-if)# spanning-tree portfast
  • S3(config-if)# exit
  • Markera trunkport som betrodd för ARP Inspection
  • S3(config)# interface fa0/1
  • S3(config-if)# ip arp inspection trust
  • S3(config-if)# exit
  • S3(config)# interface fa0/3
  • S3(config-if)# ip arp inspection trust
  • S3(config-if)# exit
  • Aktivera BPDU Guard globalt för alla PortFast-portar
  • S3(config)# spanning-tree portfast bpduguard default
  • Aktivera ARP Inspection för alla VLAN (10, 20, 30)
  • S3(config)# ip arp inspection vlan 10
  • S3(config)# ip arp inspection vlan 20
  • S3(config)# ip arp inspection vlan 30
  • S3(config)# end
  • S3#
  • PortFast-konfiguration på access-portar
  • S4(config)# interface fa0/10
  • S4(config-if)# spanning-tree portfast
  • S4(config-if)# exit
  • S4(config)# interface fa0/20
  • S4(config-if)# spanning-tree portfast
  • S4(config-if)# exit
  • Markera trunkport som betrodd för ARP Inspection
  • S4(config)# interface fa0/1
  • S4(config-if)# ip arp inspection trust
  • S4(config-if)# exit
  • S4(config)# interface fa0/4
  • S4(config-if)# ip arp inspection trust
  • S4(config-if)# exit
  • Aktivera BPDU Guard globalt för alla PortFast-portar
  • S4(config)# spanning-tree portfast bpduguard default
  • Aktivera ARP Inspection för alla VLAN (10, 20, 30)
  • S4(config)# ip arp inspection vlan 10
  • S4(config)# ip arp inspection vlan 20
  • S4(config)# ip arp inspection vlan 30
  • S4(config)# end
  • S4#
