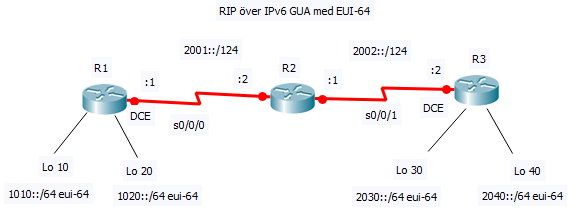

RIP och IPv6

Laborations syftet är att konfigurera IPv6 GUA adresser med metoden EUI-64 så att LLU adresser kan också skapas med samma metod, men automatiskt. Därefter aktiveras RIP

Konfigurationer

  • R1(config)#ip cef
  • R1(config)# ipv6 unicast-routing
  • R1(config)# ipv6 cef
  • R1(config)# interface lo10
  • R1(config-if)#ipv6 address 1010::/64 eui-64
  • R1(config-if)# interface lo20
  • R1(config-if)# ipv6 address 1020::/64 eui-64
  • R1(config-if)# interface s0/0/0
  • R1(config-if)# ipv6 address 2001::1/64 eui-64
  • R1(config-if)# clock rate 2000000
  • R1(config-if)# no shut
  • R1(config-if)# end
  • R1#
  • R2(config)#ip cef
  • R2(config)# ipv6 unicast-routing
  • R2(config)# ipv6 cef
  • R2(config)# interface s0/0/0
  • R2(config-if)# ipv6 address 2001::2/64 eui-64
  • R2(config-if)# no shut
  • R2(config-if)# interface s0/0/1
  • R2(config-if)# ipv6 address 2002::1/64 eui-64
  • R2(config-if)# no shut
  • R2(config-if)# end
  • R3(config)#ip cef
  • R3(config)# ipv6 unicast-routing
  • R3(config)# ipv6 cef
  • R3(config)# interface lo30
  • R3(config-if)#ipv6 address 2030::/64 eui-64
  • R3(config-if)# interface lo40
  • R3(config-if)# ipv6 address 2040::/64 eui-64
  • R3(config-if)# interface s0/0/1
  • R3(config-if)# ipv6 address 2002::2/64 eui-64
  • R3(config-if)# clock rate 2000000
  • R3(config-if)# no shut
  • R3(config-if)# end
  • R1(config)# ipv6 router rip diginto-rip
  • R1(config)# int lo10
  • R1(config-if)# ipv6 rip diginto-rip enable
  • R1(config-if)# int lo20
  • R1(config-if)# ipv6 rip diginto-rip enable
  • R1(config-if)# int s0/0/0
  • R1(config-if)# ipv6 rip diginto-rip enable
  • R1(config-if)# end
  • R2(config)# ipv6 router rip diginto-rip
  • R2(config-if)# int s0/0/0
  • R2(config-if)# ipv6 rip diginto-rip enable
  • R2(config-if)# int s0/0/1
  • R2(config-if)# ipv6 rip diginto-rip enable
  • R2(config-if)# end
  • R3(config)# ipv6 router rip diginto-rip
  • R3(config)# int lo30
  • R3(config-if)# ipv6 rip diginto-rip enable
  • R3(config-if)# int lo40
  • R3(config-if)# ipv6 rip diginto-rip enable
  • R3(config-if)# int s0/0/1
  • R3(config-if)# ipv6 rip diginto-rip enable
  • R3(config-if)# end

Verifieringar

  • show ipv6 route rip (fungerar inte på Packet Tracer)
  • show ipv6 route
  • show ipv6 route 2001::/124 (visar endast information om vägen 2001::/124)
